Model JI-4516

High-Voltage, High-Current Digital I/O Module -Isolated

• SPECIFICATIONS

• BLOCK DIAGRAM

• DEMO APPLICATION

• USER MANUAL

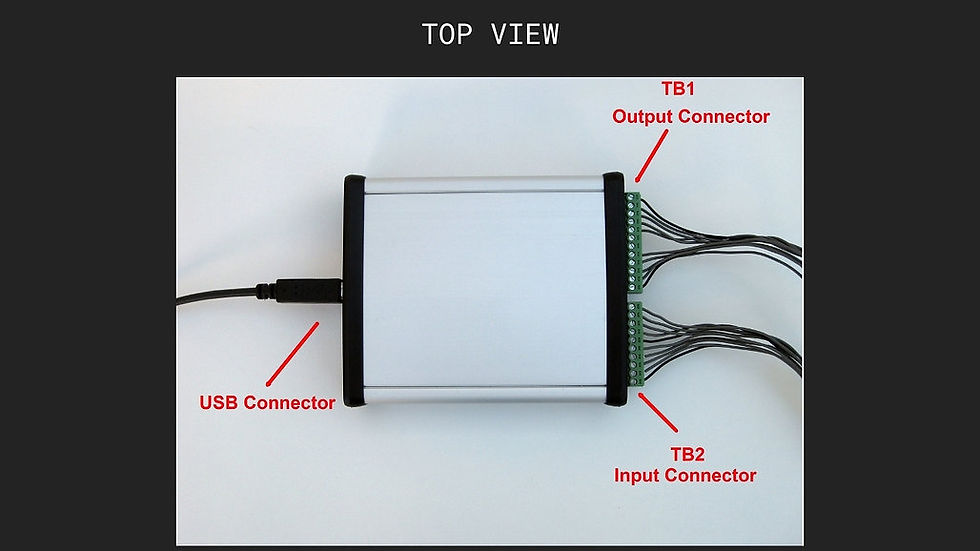

The JI-4516 module is a versatile, easy-to-use device for adding high-voltage, high-current digital I/O capability to a computer system via a USB connection. The module is comprised of 8, low-side power MOSFET switches, and 8 high-voltage inputs. I/O ground isolation eliminates ground-loops and provides protection from noise and switching transients during high-current load switching. The JI-4516 is available as either a desktop unit or low-cost OEM board.

FEATURES

• 8 Optically isolated input channels

• 8 Optically isolated high-voltage, high-current MOSFET switches -

              ✔ 3A low-side sink capability

              ✔ 30V (max) switching

              ✔ Thermal and overload protection

              ✔ Inductive load Clamp Diode for each output

• Change-of-State (COS) Detection

• Programmable Watchdog-Timer (WDT)

• Pluggable screw terminal connectors – Input and Output

• USB USB 2.0 compatible

• Available as either a desktop unit or stackable, low-cost OEM board

INCLUDED WITH ORDER

• JI-4516 Module with enclosure

• User Manual (USB Stick)

• Application Software (USB Stick)

• Sample C# code (USB Stick)

APPLICATIONS

• Ideal for switching resistive (lamp), capacitive, and inductive loads

• Industrial automation

• Production-line testing

• Embedded OEM
